In today’s digital world, seamless connectivity between devices is crucial. For high-resolution displays, a robust and versatile interface is essential. Enter Display Port, a digital display interface designed to deliver exceptional video and audio quality.1

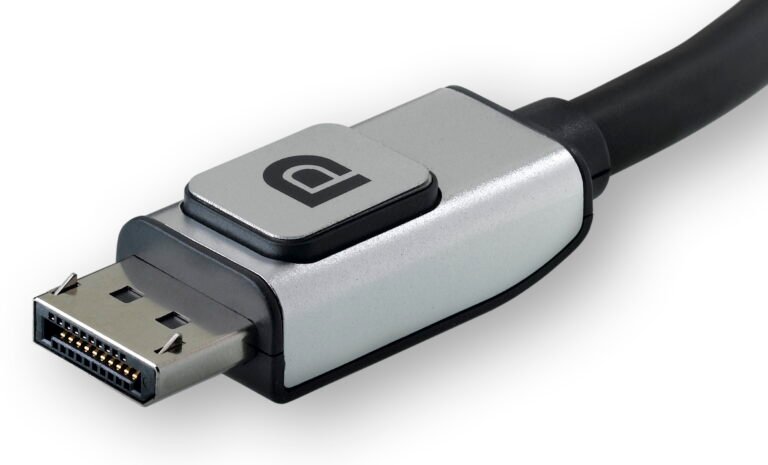

What is DisplayPort?
Display Port is a digital interface standard developed by the Video Electronics Standards Association (VESA).2 It’s designed to transmit high-quality digital video and audio signals between a source device (like a computer or gaming console) and a display device (like a monitor or projector).3
Key Features and Benefits
High Bandwidth: Display Port offers significantly higher bandwidth compared to older interfaces like VGA and DVI, enabling support for high resolutions, high refresh rates, and deep color.4
Versatility: Supports a wide range of display technologies, including LCD, LED, OLED, and even projectors.5
Multi-Streaming: Allows for the transmission of multiple video streams simultaneously, enabling features like multi-monitor setups and video walls.6
Audio Support: Integrated audio support eliminates the need for separate audio cables.7
Forward-Looking: DisplayPort continues to evolve with new standards and features, ensuring compatibility with future display technologies.8
Display Port Versions
DisplayPort 1.0: The original standard, offering good performance for standard 1080p displays.
DisplayPort 1.1: Introduced minor improvements in bandwidth and features.
DisplayPort 1.2: A significant upgrade, supporting higher resolutions (up to 4K) and refresh rates, as well as multi-streaming.9
DisplayPort 1.3: Further increased bandwidth to support 5K resolutions and higher refresh rates, crucial for gaming and demanding applications.10
DisplayPort 1.4: Supports 8K resolution at 60Hz, HDR, and other advanced features.
DisplayPort vs. Other Interfaces:
HDMI: A popular competitor, HDMI offers good performance for most home theater and gaming applications. However, DisplayPort generally offers higher bandwidth and more advanced features.
USB-C: Many modern devices utilize USB-C ports, which can also transmit DisplayPort signals via a protocol called DisplayPort Alternate Mode. This provides versatility and convenience.
VGA and DVI: Older standards with limited capabilities compared to DisplayPort.
Choosing the Right DisplayPort Cable
Cable Length: Choose a cable length that meets your specific needs while avoiding excessive cable length, which can impact signal quality.
Cable Quality: Invest in high-quality cables from reputable brands to ensure optimal performance and signal integrity.
Certification: Look for cables certified by the Video Electronics Standards Association (VESA) to guarantee compliance with DisplayPort standards.
Troubleshooting DisplayPort Issues
Check Connections: Ensure both ends of the cable are securely connected to the source and display devices.
Cable Quality: If experiencing issues, try a different DisplayPort cable.
Driver Updates: Update your graphics card drivers to the latest versions.
Device Compatibility: Ensure your devices are compatible with the DisplayPort version and features you’re trying to utilize.
The Technical Underpinnings
Digital Signal Transmission: DisplayPort transmits digital video and audio signals using a packet-based protocol. This allows for efficient and flexible data transmission, enabling features like multi-streaming and advanced audio formats.
High-Speed Data Transfer: DisplayPort utilizes high-speed differential signaling, which minimizes signal degradation over longer distances and enables high bandwidth for transmitting high-resolution video and audio data.
Flexibility and Adaptability: DisplayPort’s flexible architecture allows for continuous evolution and adaptation to new technologies. This ensures that the standard remains relevant and capable of supporting future display innovations.
DisplayPort and the Rise of High-Resolution Displays
DisplayPort has played a crucial role in driving the adoption of high-resolution displays:
Enabling 4K and Beyond: DisplayPort’s high bandwidth capabilities have been instrumental in enabling widespread adoption of 4K displays and support for even higher resolutions, such as 5K and 8K.
High Refresh Rate Gaming: DisplayPort is essential for high-refresh-rate gaming, enabling smooth and responsive gameplay experiences with minimal input lag.
VR/AR Applications: DisplayPort’s high bandwidth and low latency are crucial for powering virtual reality (VR) and augmented reality (AR) headsets, delivering immersive and responsive experiences.
DisplayPort and the Future of Connectivity
USB-C and DisplayPort Alternate Mode: The integration of DisplayPort functionality into the USB-C connector has significantly increased its versatility and convenience. This allows for a single cable to handle both data transfer and high-resolution video output, simplifying connectivity and reducing cable clutter.
DisplayPort over USB-C: This technology allows for high-bandwidth video and audio transmission over USB-C cables, enabling seamless connectivity between a wide range of devices, including laptops, smartphones, and tablets.
Next-Generation Standards: Ongoing research and development are focused on further enhancing DisplayPort capabilities, such as improved compression techniques, support for even higher resolutions and refresh rates, and integration with emerging display technologies like 8K and beyond.
DisplayPort and the User Experience
Enhanced Visual Experience: DisplayPort enables users to experience stunning visuals with vibrant colors, deep blacks, and smooth motion, enhancing their entertainment and productivity experiences.
Seamless Connectivity: DisplayPort simplifies connectivity by providing a single cable solution for both video and audio, reducing clutter and improving user experience.
Future-Proofing: By investing in DisplayPort technology, users can ensure that their devices are well-equipped to support the demands of future display technologies and applications.
Final Thoughts
DisplayPort has emerged as a critical technology for modern digital displays, offering high bandwidth, versatility, and a robust foundation for future innovations. As display technologies continue to evolve, DisplayPort will remain a crucial interface, enabling seamless connectivity and delivering exceptional visual experiences.
FAQs
How does DisplayPort Alternate Mode enhance the user experience?
DisplayPort Alternate Mode leverages the versatility of the USB-C connector, enabling it to transmit DisplayPort signals. This significantly simplifies connectivity by allowing a single USB-C port to handle both data transfer and high-resolution video output. This eliminates the need for multiple cables, reducing clutter and improving the overall user experience by streamlining connections and providing a more convenient and efficient workflow.
How does DisplayPort contribute to the rise of high-resolution displays?
DisplayPort has played a pivotal role in driving the widespread adoption of high-resolution displays. Its high bandwidth capabilities are essential for transmitting the massive amounts of data required to drive 4K, 5K, and even 8K displays at smooth frame rates. This has led to a significant improvement in visual quality across various applications, from gaming and entertainment to professional content creation, where high-resolution displays are increasingly crucial for optimal performance and productivity.
